All Plasma Power Source

Hypertherm Powermax 45,65,85,105 Consumables

Genuine hypertherm Plasma Consumables are at wholesale prices.

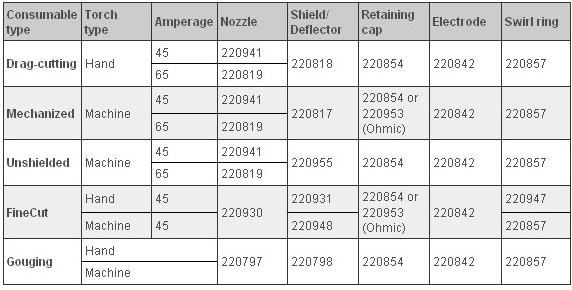

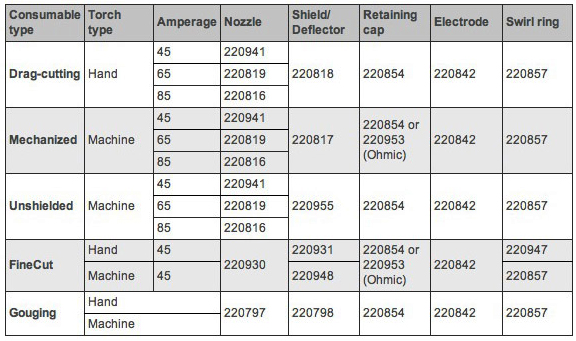

Star Engineers offering a complete range of Hypertherm Powermax 45,65,85,105 Consumables :-

HYPERTHERM POEWRMAX 45 Consumable

Technical SPecifications :-

Handheld or mechanized plasma system for cutting and gouging metal.

Cut Capacity (Recommended) Handheld Mechanized Pierce
Maximum 1/2" (12 mm) -
Severance 3/4" (19mm) 3/8" (10 mm)
Gouge Capacity 1" (25 mm) -

Metal removed per hour : 6.2 IBS (2.8 kg)

Depth x width : 1/8" (2.9 mm) x 1/4" (6.5 mm)

Technical SPecifications :-

Handheld or mechanized plasma system for cutting and gouging metal.

Cut Capacity (Recommended) Handheld Mechanized Pierce
Maximum 1/2" (12 mm) -
Severance 3/4" (19mm) 3/8" (10 mm)
Gouge Capacity 1" (25 mm) -

Metal removed per hour : 6.2 IBS (2.8 kg)

Depth x width : 1/8" (2.9 mm) x 1/4" (6.5 mm)

Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

Key Advantages :-

  • Small size and light weight provide unmatched portability among 1/2" (12 mm) machine.
  • Conical FlowTM increases arc energy density for superior cut quality with little dross.
  • Patented drag-cutting technology makes it easy to use-even for first-time operators.
  • Boost ConditionerTM compensates for input voltage variations on 200-240 V lines, providing improved performance on low-line voltage, on motor generators and on fluctuating input power.
  • CNC interface abd Fast ConnectTM torch connection increase versatility for handheld and mechanized usage.
  • Dual-angle design extends nozzle life and lowers operating cost.
  • PowercoolTM design cools internal components more effectively for greater system reliability and improved uptime.

Applications :-

  • Hand cutting
  • Gouging
  • Mechanized cutting -X-Y tables Track systems - Pipe systems - Robotic systems

Standard system Components :-

  • Power Supply
  • T45v hand torch or T45m machine torch
  • Extra consumables for cutting and gouging
  • Work cable with clamp, 20' (6m)
  • Carry strap
